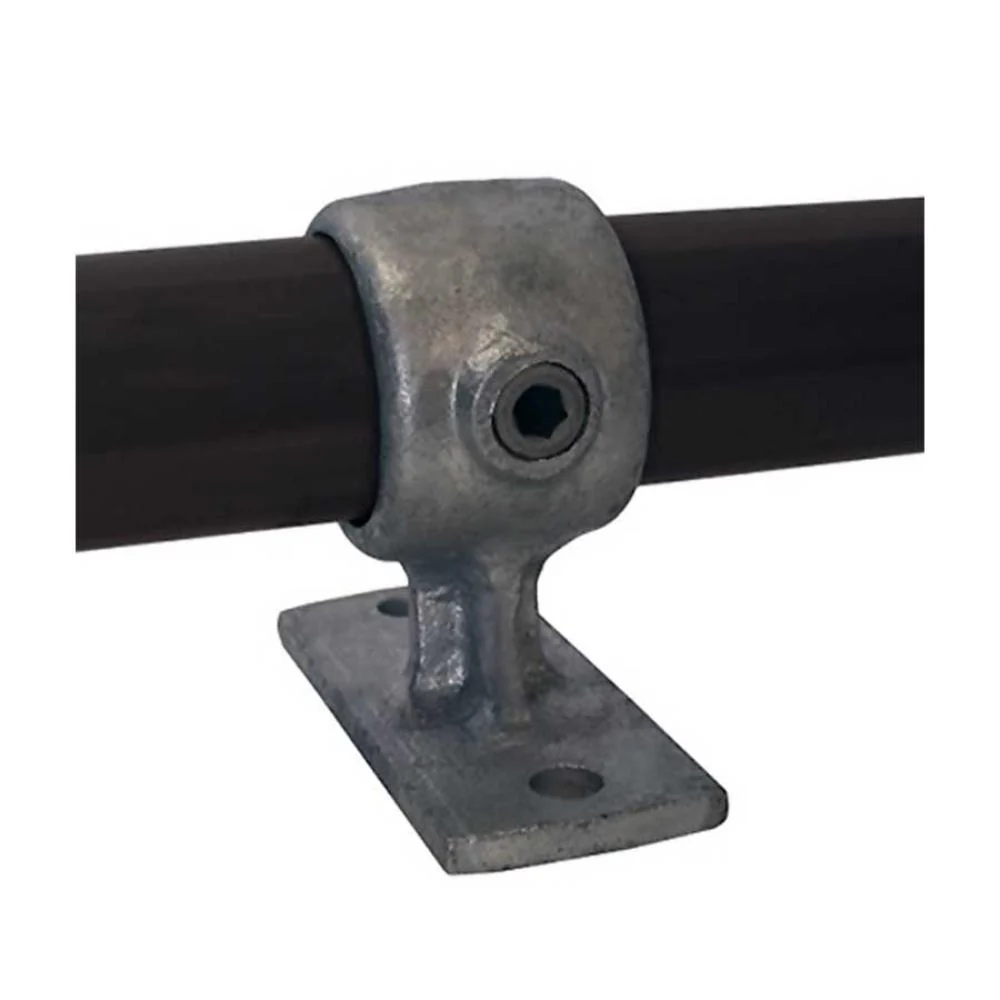

HAND RAIL BRACKET (1 1/2) 48mm OD

The C16 handrail bracket from FastClamp is primarily used to secure handrail tube to walls but can also be used to display boards, guardrail kick plates and more.

Made of cast malleable iron to BS EN 1562:2012 with a hot dipped galvanised (HDG) finish to BS EN ISO 1461:2009

For installation with 1 1/2" (40mm) NB (nominal bore) steel pipe and tube with a 48.3mm OD (outer diameter)

Bolt holes: 2 x 11mm diameter

Bracket dimensions: 48mm x 108mm

Ideal for use in handrail or guardrail systems as well as roof edge protection, barriers, racks, shelving, sports nets and much more

P021637
